What exactly do height and headroom mean?

• Exterior height is the distance from the ground to the highest fixed point. Manufacturers publish this on the spec sheet. Some quote with roof rails; others without-check the fine print. Removable bits like antennas and racks aren’t always included.
• Headroom is the vertical space between your seated hip pivot (the H‑point) and the roof lining above. Automakers measure it using standard procedures (SAE J1100 and J826, and ISO H‑point devices) so numbers are consistent across models. A sunroof typically cuts headroom by 20-30 mm or more, which is why many brands list “with” and “without sunroof.”

Why this matters: a tall exterior doesn’t guarantee generous headroom. Designers juggle seat cushion thickness, seat height range, H‑point position and roof shape. You need to sit in the car with the seat at the height you’ll actually use.

How much does height really change cargo and where the car can go?

Cargo isn’t just a cubic number. It’s floor area plus usable height. Two SUVs can both claim 500+ litres yet feel totally different because one has a taller cargo box that lets you stack boxes, prams or camping tubs vertically. Manufacturers follow SAE J1100 conventions for cargo, but there are variations (e.g., how far seats are moved, whether the space is measured to the roof or seatback). That makes paper comparisons tricky.

Height dictates clearance, too. In Australia and New Zealand, 2.1 m is a very common posted maximum in multi-storey carparks. Some older or tight CBD structures dip to around 1.9-2.0 m; newer facilities and many home garages are 2.1-2.4 m. Roof racks and boxes change the game: many cargo pods add roughly 40-45 cm to the car’s peak height, and even low-profile ones add around 35-40 cm. Add crossbar height as well. If your SUV is 1.75 m tall on paper, rails and a box can push you over 2.1 m-suddenly that “no worries” becomes a three-point turn in traffic.

Is taller actually better to drive?

There are real upsides to a higher seat. You see further down the road, which many drivers find calming in city traffic and on rural highways. Getting in and out is often easier, and rear-seat headroom is usually better in taller vehicles-handy for teenagers or bulky child seats.

But trade-offs are physical, not just theoretical:

• Stability: Raise the centre of gravity and, all else equal, you raise rollover risk. Engineers use a simple metric called the Static Stability Factor: track width divided by twice the centre-of-gravity height. Lower values imply higher rollover propensity. That’s why roof loads and lifted suspensions matter; they raise the centre of gravity. Electronic stability control (standard on virtually all modern cars) has slashed many single-vehicle rollovers, and wider tracks and stronger roofs further mitigate risk-but the geometry still counts.
• Visibility quirks: Higher bonnets and thicker pillars can create larger close-in blind zones right in front of and behind the vehicle. Cameras and sensors help a lot; they don’t change physics.
• Efficiency: Aerodynamic drag rises with frontal area and shape. NASA’s drag equation puts it plainly: more frontal area or worse drag coefficient increases force with the square of speed. Taller vehicles tend to have both more area and less slippery shapes, which is why highway fuel use is usually higher for SUVs/utes than lower wagons or sedans with the same engine tech. Aero add-ons (active shutters, smooth underbodies) help but don’t erase the gap.

The cost of getting it wrong

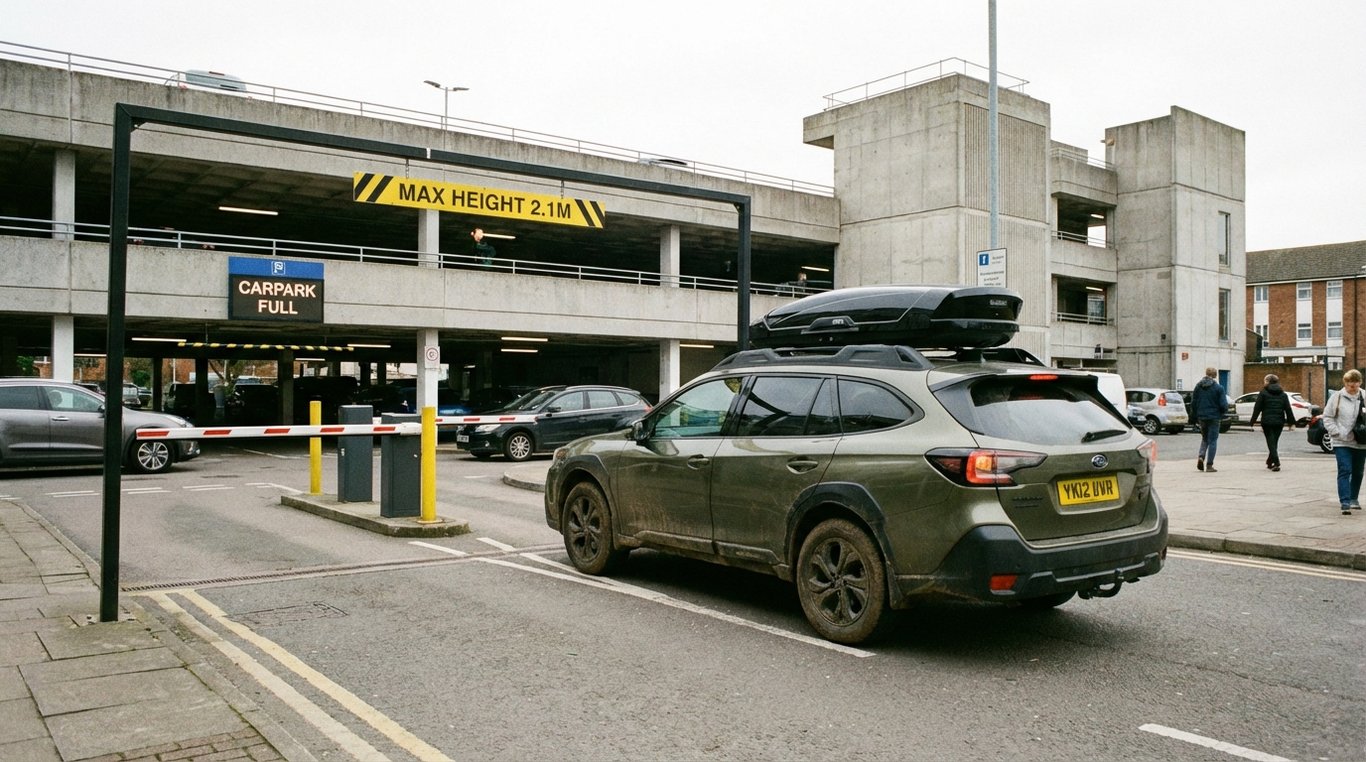

Picture two weekends. In one, you roll into a coastal carpark, only to meet a 2.1 m barrier. The bikes are on the roof, you’re at 2.14 m, and the queue behind you starts beeping while you bail out. Later, the apartment garage at 2.0 m is a no-go, so you’re parking on-street in the rain. Minor? Maybe. But over years, it’s constant friction.

Now flip it. You chose with clearance in mind. You measured your garage opening at 2.1 m, picked a wagon with excellent headroom without a sunroof, and a low-profile roof box that keeps total height at 2.04 m. You glide into carparks others avoid, your tall teen sits upright without slouching, and the weekly grocery run stacks cleanly thanks to a taller cargo bay. You feel like the car fits your life rather than the other way round.

So what should you weigh up instead?

Forget “taller is always safer and roomier.” Use a better lens. Here’s a simple HIGHER framework to make sense of height:

• H Headroom (H‑point): Check front and rear headroom measured to SAE J1100/J826 standards. Ask “with or without sunroof?” Sit in the car with the seat raised to your normal position.
• I Interior cargo height: Don’t just read litres; open the tailgate and measure floor-to-ceiling at the hatch and behind the second row. Taller interiors stack better.
• G Garage and carpark clearance: Know your limits-2.1 m is the common cap. If you have roof rails or carry gear, calculate the total height.
• H Handling and stability: Consider centre of gravity, track width, tyre choice and whether you plan roof loads. ESC is a must; wider footprints and good tyres help.
• E Efficiency at speed: Taller usually means more drag. If you do lots of motorway kilometres, factor the aero penalty into your running costs.
• R Roof gear reality: Boxes and racks add 35-45 cm. Add them to the spec-sheet height and record the number on a dash label so you don’t forget at the next carpark.

Questions to ask at the dealership or in a listing:

• Are the headroom figures quoted with or without the sunroof?
• What measurement protocol was used for cargo volume (SAE J1100, and to what reference points)?
• What’s the as-delivered height with rails? What height with the dealer’s recommended crossbars and a medium box?
• What’s the vehicle’s track width, and does this model include ESC and rollover-curtain airbags? (Almost all do, but check.)

How to choose with confidence (and avoid carpark crunches)

Use this step-by-step and you won’t be caught out.

1. Measure your world.
   • Tape your home garage opening and lowest interior obstruction.
   • Note the lowest local carpark you regularly use (most post 2.1 m; some are lower).
   • Decide if you’ll run a roof box or rack often. Look up its external height and crossbar stack.
2. Shortlist smart.
   • If you or your passengers are tall (say 185 cm+), shortlist vehicles with front headroom around 980-1,050 mm and verify “without sunroof” if you’re on the margin.
   • If you haul bulky gear, prioritise vehicles with taller cargo openings and flat floors over those with only big litre claims.
3. Test the fit.
   • Sit in the driver’s seat at the high end of the adjustment range. Check head clearance and eyesight under the mirror.
   • Sit in rear and third rows in real shoes/hats. Watch for headliner intrusions and skylights.
   • Bring a typical box or pram and stack it to see if the vertical space actually works.
4. Do the maths on clearance. Add the vehicle’s as-configured height (with rails) + crossbars + box height. If you’re under 2.1 m by less than 30 mm, assume you’ll clip something eventually. Aim for at least 50 mm margin.
5. Balance the drive feel. If you value nimble handling and long highway trips, consider a lower wagon or crossover with good headroom. If you need the commanding view and cargo height of an SUV, choose models with wide tracks, quality tyres, and robust safety ratings (ANCAP five-star; strong structural scores; in the US market, IIHS roof strength is a useful proxy).
6. Plan your ownership.
   • If you’ll keep a roof box on all season, choose a low-profile design to trim drag and clearance issues.
   • Label your total height on a small dash sticker. It’s a small trick that prevents big headaches.

Quick reference: typical figures

• Front headroom in many cars: roughly 965-1,070 mm (about 38-42 in). SUVs/minivans often sit at the upper end.
• Common clearances: multi-storey carparks in AU/NZ typically post 2.1 m; some are 2.0 m or even 1.9 m; many home garages are 2.1-2.4 m.
• Roof boxes: often add 35-45 cm to vehicle height once mounted; always add crossbar stack height.
• Rollover geometry: Static Stability Factor = track width ÷ (2 × centre-of-gravity height). Lower SSF means higher rollover propensity.
• Aerodynamics: Drag rises with frontal area and drag coefficient; at highway speeds, taller vehicles usually consume more fuel due to higher drag.

Helpful context behind the numbers

• How headroom is measured: OEMs use SAE J1100 and J826 with H‑point devices (also covered by ISO H‑point specs) so you can compare between brands.
• Why cargo litres mislead: SAE J1100 allows variants; some brands measure to the roof, others to the seatback, and seat positions differ. That’s why a tape measure and a test pack beat a brochure.
• Safety and stability: The relationship between centre of gravity, track width and rollover risk is well documented by NHTSA and the National Academies. ESC has significantly reduced many rollover crashes. Strong roofs and curtain airbags further protect occupants.
• Aero and economy: NASA’s drag equation explains why taller, boxier shapes pay a fuel penalty at speed. Modern aero tricks help, but physics still wins.

If you remember one shift, make it this: height isn’t a single dimension. Choose using the HIGHER lens-Headroom, Interior cargo height, Garage clearance, Handling/CG, Efficiency, Roof gear-then measure your world and test the fit. Do that, and your next vehicle won’t just be taller or shorter. It’ll be right.
