Here’s the twist: interior space is measured in a very specific, engineering-driven way that doesn’t always match how you actually sit. Most specs you see are tied to a fixed seating reference, not your posture, your torso length, or the way you raise the seat for visibility. That’s why two cars with similar “front legroom” can feel totally different.

I’ve spent years helping buyers compare cabins and digging into the standards carmakers use. Once you learn a few insider cues, you can size a cabin to your body in minutes and avoid the “I’ll get used to it” regret.

What’s the one idea that changes how you judge interior space?

Stop chasing big numbers in isolation and start with the H-point. The H-point is the defined hip pivot of a seated person that manufacturers use to anchor measurements like headroom and legroom. Think of it as the hinge where your torso meets your thighs. If the H-point is set low and the roofline slopes, you’ll have decent paper headroom but need to slouch to see out. If it’s higher with a taller roof, the same “headroom” figure can feel much roomier.

It’s like measuring ceiling height without asking where the chair sits. A high ceiling is great, unless your chair is on a platform under a beam.

Traditional buyer logic goes: find the biggest legroom number and tick the box. That often backfires because:

• Seat height, tilt, and cushion length change where your body actually ends up.
• Options like sunroofs reduce peak headroom right where tall drivers need it.
• Console width, seat bolsters, and the floor tunnel steal usable width and knee space that the numbers don’t reveal.

Better questions to ask:

• Where is the seat’s H-point relative to the roof and pedals when I set my normal posture?
• How do options like a panoramic roof or sport seats change usable space?
• Do the hard points (console, door armrests, B‑pillar) clash with my knees, elbows, or shoulders?

So what do the official numbers actually mean?

Manufacturers typically follow SAE standards (notably J1100 for interior measurements and J826 for the seating template) that define the H-point and how to measure headroom, legroom, and shoulder room. In the US, interior volume categories referenced by regulators in 49 CFR Part 523 also draw on these templates. Even though AU/NZ specs aren’t regulated the same way, global brands here use the same measurement practice.

Key facts that change decisions:

• Headroom is vertical clearance from a defined head point above the H-point to the headliner. A sunroof or panoramic glass module commonly reduces front headroom by about 20-40 mm, sometimes more. Many spec sheets list “with” and “without” sunroof figures for this reason.
• Legroom on paper is measured from the H-point to a defined pedal or heel point, not from your backside to your knees. That’s why two cars with similar legroom can feel different once you adjust the seat.
• Shoulder room is a straight-line width at shoulder height between interior reference points. Deep bolsters and thick door cards can make a generous number feel tight at the elbows.
• “Passenger volume” can look impressive while hiding the fact that most of that space sits in the front row.

The costs of getting it wrong aren’t small. A poor fit can mean daily discomfort, extra driver fatigue on long trips, arguments about who sits where, and an earlier-than-planned trade-in.

How does the wrong fit show up in daily life?

Picture two scenarios on the same Sunday.

In the wrong car: you raise the seat for better sight lines and your hair brushes the headliner. Every driveway ramp brings a little head tap. Your left knee nudges the console, your right elbow fights the door pull, and your teenager in the middle rear seat straddles a tall floor hump. It all feels cramped, even though the brochure said “five adults.”

In the right car: you set your usual posture, lift the seat a notch, and there’s still two fingers of clean air above your head. Your elbows rest naturally on the armrests without flaring your shoulders. The rear middle seat has a low tunnel and a belt that doesn’t cut across a shoulder. You arrive relaxed rather than rubbed raw.

One family we worked with swapped from a slinky-roofed SUV to a boxier wagon. On paper the shoulder and legroom were similar, but the wagon had a higher H-point, longer front cushions, and a slimmer console. School runs went from noisy elbow wars to quiet podcasts.

What’s the smarter way to test cabin space?

Use the SEAT framework. It’s quick, human, and cuts through marketing.

• S Set your posture: Put the seat where you actually drive. Adjust height for visibility, reach for pedals, and wheel tilt/telescope for a relaxed shoulder angle.

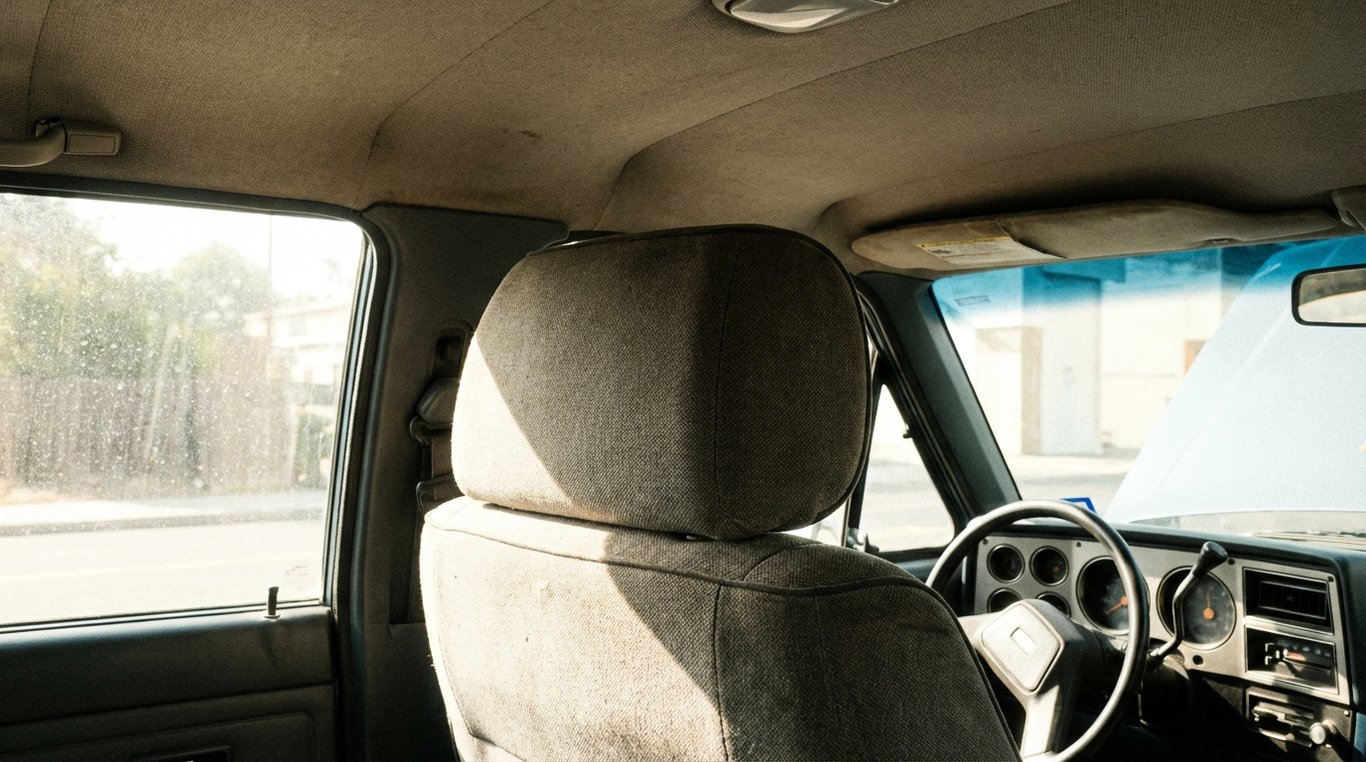

• E Eye and roof clearance: With your posture set, check vertical clearance above your head. Then raise the seat one or two clicks to simulate a taller driver day or a thick winter beanie. If you touch the headliner or sunroof trim, note it.
• A Arm and shoulder width: Rest both elbows naturally on the armrests. Do your shoulders flare, or do door bolsters force you inward? Sit two-up to feel elbow clash points.
• T Thigh and knee space: Check thigh support length and whether your knees hit the console or steering column during full brake travel.

Questions to ask the sales rep or in the spec sheet:

• Do you have this model without the sunroof so I can compare headroom?
• What’s the official headroom difference with and without the panoramic roof?
• How far does the driver’s seat travel, and can I raise it without losing sight of the instruments?
• Is the rear floor flat, and how wide is the centre seat base?

How do you choose confidently at the dealership?

Here’s a step-by-step you can run in 15-25 minutes that works at a dealer or with a private seller.

1. Quick fit checks
   • Set your normal posture. With your heel on the floor, ensure you can fully depress the brake with a slight knee bend and keep your wrists on top of the wheel without locking your elbows.
   • Raise the seat a notch. You should still clear the roof lining by at least a couple of fingers. Tall drivers often prefer 30-40 mm of spare headroom with their chosen height.
   • Slide the seat through its full travel to learn the extremes. If you’re long-legged, confirm there’s still good pedal reach and clear instrument view when you’re back far enough.
2. Rear and middle-seat reality
   • Sit directly behind your own driving position. Straighten your lower legs and check for knee and foot clearance under the front seat.
   • Try the middle rear seat. Look for a low or minimal floor tunnel, a belt that doesn’t cut into your neck, and a cushion wide enough for real people, not just “emergency” rides.
3. Simple measurements you can do
   • Headroom: in your normal posture, measure the gap from the top of your head to the headliner with a tape or a phone level and a flat card. Note the number and how it feels.
   • Practical legroom: measure from the back of your hips to the back of your knee. That’s your personal comfort reference. Compare across cars; ignore the brochure number here.
   • Shoulder feel: sit two-up in the front and rear for five minutes. Natural elbows touching? That car will feel tight on longer drives regardless of the published width.
4. Options and design elements that change usable space

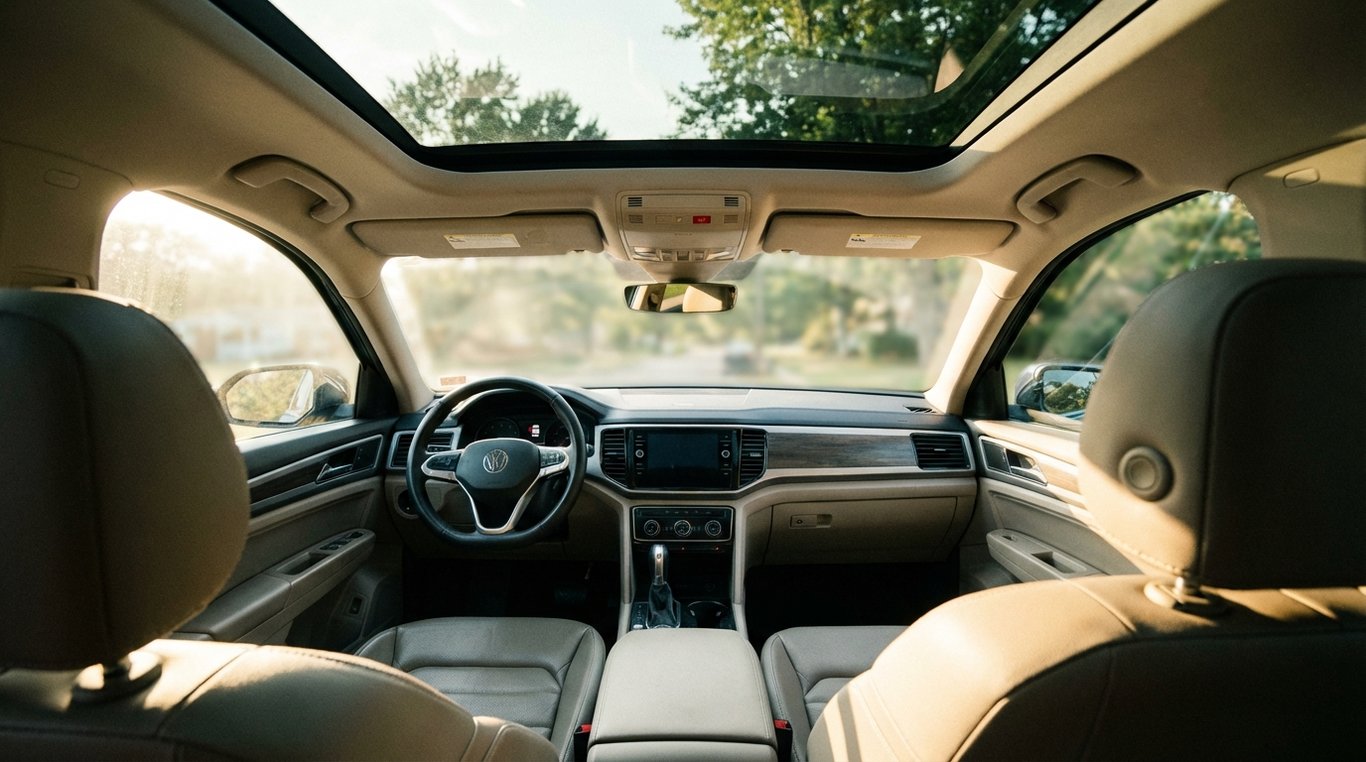

   • Sunroof/panoramic roof: compare the same model with and without. Many brands publish the difference, and it’s often 20-40 mm. Decide if the extra light is worth the reduced clearance for your height.
   • Seat bolsters and cushion length: sport seats can narrow usable width and reduce under-thigh support. Great for cornering, not always for commuting.
   • Console and tunnel: a wide console can steal knee room; a tall rear tunnel makes the centre seat kid-only. Both are common in otherwise large SUVs and utes.
   • Door opening and B‑pillar: tall drivers may struggle with entry/exit if the B‑pillar is forward or the door opening is tight, regardless of the legroom number.
5. Recommendations by use case
   • Tall driver (183 cm+): prioritise headroom without a sunroof, long front seat cushions, and generous seat height adjustment. Numbers around 980-1,015 mm of front headroom tend to suit, but your personal fit wins.
   • Family of five with frequent three-across: look for a flat rear floor, wide rear shoulder room, and slim door bolsters. Test three-up for 10 minutes, belts buckled.
   • Rideshare or frequent back-seat adults: prioritise rear toe-room under front seats and a higher H-point for easier entry/exit.
   • Weekend holidays and pets: test-fit child seats or crates, and check how the seats fold and whether the pass-through suits skis or prams.

Common objections, answered

• “The spec says it fits five.” Yes, by the rulebook. But the rulebook doesn’t account for your posture, your elbow width, or that big console.
• “The panoramic roof makes it feel bigger.” It does feel airier. It also often reduces head clearance where you actually sit. Decide with your measurements, not the brochure photos.
• “I’ll get used to it.” You’ll adapt until your neck, back, or patience gives out. Fit costs less than a trade-in.

Where and how to shop smarter

• Try the same model in two trims: with and without the sunroof or sport seats. Many dealers have both on-site.
• Sit for at least 10 minutes in each seat you’ll use often. Discomfort grows with time.
• Bring a tape measure or use your phone’s level and a card. Record your personal headroom and knee-to-seat measurements so you can compare across cars later.

The shift to make

Specs are a starting point, not the verdict. The H-point, seat design, and hard points decide how that space reaches your body. Use SEAT to size the cabin to you, then confirm with a quick compare of sunroof vs solid roof and a real two-up sit test. Do that, and you’ll choose a car that fits your life, not just the brochure.
