Here’s the twist: the headline tow rating isn’t the number that protects you. Payload, tongue/ball weight and the combined weight rating do. Once you look through that lens, the setup decisions suddenly make sense-and the drive becomes far less stressful.

Is the big ‘towing capacity’ number leading you astray?

The common belief is that if your vehicle’s “towing capacity” is 3,500 kg, you can tow anything up to 3,500 kg. Not quite. That figure lives alongside other limits: the vehicle’s Gross Vehicle Weight Rating (GVWR), its Gross Combined Weight Rating (GCWR), axle ratings, payload, and the ratings stamped on your towbar, tongue and tow ball. The combination is only as strong as its weakest link.

A better way to think about it: your vehicle is a backpacker and your trailer is the pack. The pack’s weight (GTW) matters, but so does how much of it sits on your shoulders (tongue/ball weight), how fit you are (payload and GVWR), and the total of you plus the pack (GCWR). Focus on just one and you’ll be sore, slow, or both.

As you size up your setup, ask:

• What’s my real payload once passengers, gear and tongue weight are included?
• Is the stated capacity for a braked or unbraked trailer?
• Which component in my chain has the lowest rating-and am I over it?

What the numbers actually mean (and how they add up)

• Curb weight: your vehicle with standard equipment and fuel, no people or cargo.
• GVWR: the maximum allowed weight of your loaded vehicle. Curb weight + payload must be at or under this number.
• Payload: the maximum weight of passengers, cargo and the trailer’s tongue (tow‑ball) load that the vehicle can carry. It’s printed on the driver’s door placard.
• GTW (Gross Trailer Weight): the loaded trailer’s total weight. Weigh it at a public scale.
• Tongue/ball weight (TW): the downward force the trailer places on the tow ball. Aim for roughly 10-15% of GTW for a conventional (bumper‑pull) trailer, or 15-25% for a fifth‑wheel/king‑pin setup. TW counts against payload.
• GCWR: the maximum allowable mass of the loaded vehicle plus the loaded trailer.

Simple checks you can run:

• GTW must be less than or equal to your vehicle’s rated towing capacity.
• Loaded vehicle mass + GTW must be less than or equal to GCWR (if published).
• Every kilogram you add to the cabin or tray (people, cargo, accessories) reduces available payload for tongue weight.
• Never exceed the lowest‑rated component in the chain: vehicle, towbar, tow tongue, tow ball, coupling, safety chains, trailer axle/brakes.

Handy fact bites:

• Many AU/NZ vehicles quote two ratings: braked and unbraked. Unbraked is typically much lower. In Australia, unbraked trailers are generally limited to 750 kg. In New Zealand, unbraked limits and stopping performance rules also cap what you can tow-always check your owner’s manual and local road authority guidance.
• A weight‑distribution hitch doesn’t increase your vehicle’s rating; it helps restore front axle load and stability when you’re near the limit.
• Too little tongue weight is a top cause of trailer sway; too much reduces steering and headlight aim.

What does a good or bad setup feel like on the road?

Picture two weekends on the Great Ocean Road. On the first, your 2,200 kg caravan has just 6% on the ball because the heavy gear is stowed behind the axle. At 85 km/h a gust hits, the caravan wiggles, then the car does. Your hands clamp the wheel, every pass by a truck is tense, and you arrive wrung out.

Next weekend, you shift water and heavy items forward and measure a 12% ball weight. You fit a properly rated weight‑distribution hitch and set your brake controller. The rig sits level, steering feels planted, and when a crosswind kicks up you barely need to correct. You talk, you laugh, you notice the view. Same car, same caravan-completely different day.

The choice ripples beyond comfort. The right setup protects your family, your pride in the gear you’ve worked for, and your calendar-because mishaps cost time and money.

A smarter way to choose and set up your tow combo

Ditch the single-number mindset and use this simple TOW‑SAFE framework:

• T = Tongue weight target: Aim for 10-15% (ball‑coupled) or 15-25% (fifth‑wheel). Measure it.
• O = Overall combined mass: Check GCWR if available; add loaded vehicle + GTW.
• W = Weakest link wins: Capacity is capped by the lowest rating (vehicle, towbar, tongue, ball, coupling, chains, trailer axle/brakes).
• S = Spec reading: Confirm whether the tow rating is braked or unbraked; note any conditions in the owner’s manual.
• A = Axle and payload margins: Don’t just hit the number-keep sensible buffer for hills, heat and headwinds.
• F = Fit-for-purpose hardware: Correct towbar, receiver, ball size, weight‑distribution and sway control as recommended.
• E = Electrical and emergency: Right plug (7‑pin/12‑pin), working lights, brake controller for electric brakes, and a functional breakaway where required.

Questions to ask a dealer or fitter:

• What is the vehicle’s payload with my chosen options? What’s the actual number on the door sticker?
• Is this towbar and ball stamped to at least my GTW and tongue load?
• Do I need electric trailer brakes and a breakaway system for my trailer’s mass where I live?
• Will a weight‑distribution hitch be required or recommended for this vehicle?

Your step-by-step plan: from spec sheet to safe first trip

1. Find the real numbers on your vehicle
   • Read the owner’s manual towing section. Note towing capacity (braked and unbraked), GVWR, GCWR (if listed), and any conditions (e.g., speed, gradient, use of WDH).
   • Check the driver-side door placard for payload and tyre pressures.
2. Weigh and balance your trailer
   • Weigh the fully loaded trailer (GTW) at a public weighbridge.
   • Measure tongue/ball weight with a scale, or by comparing axle weights at the weighbridge. Adjust loading to hit 10-15% for a ball‑coupled trailer.
   • Secure cargo and balance load fore/aft; heavy items low and near the axle(s).
3. Match the hardware

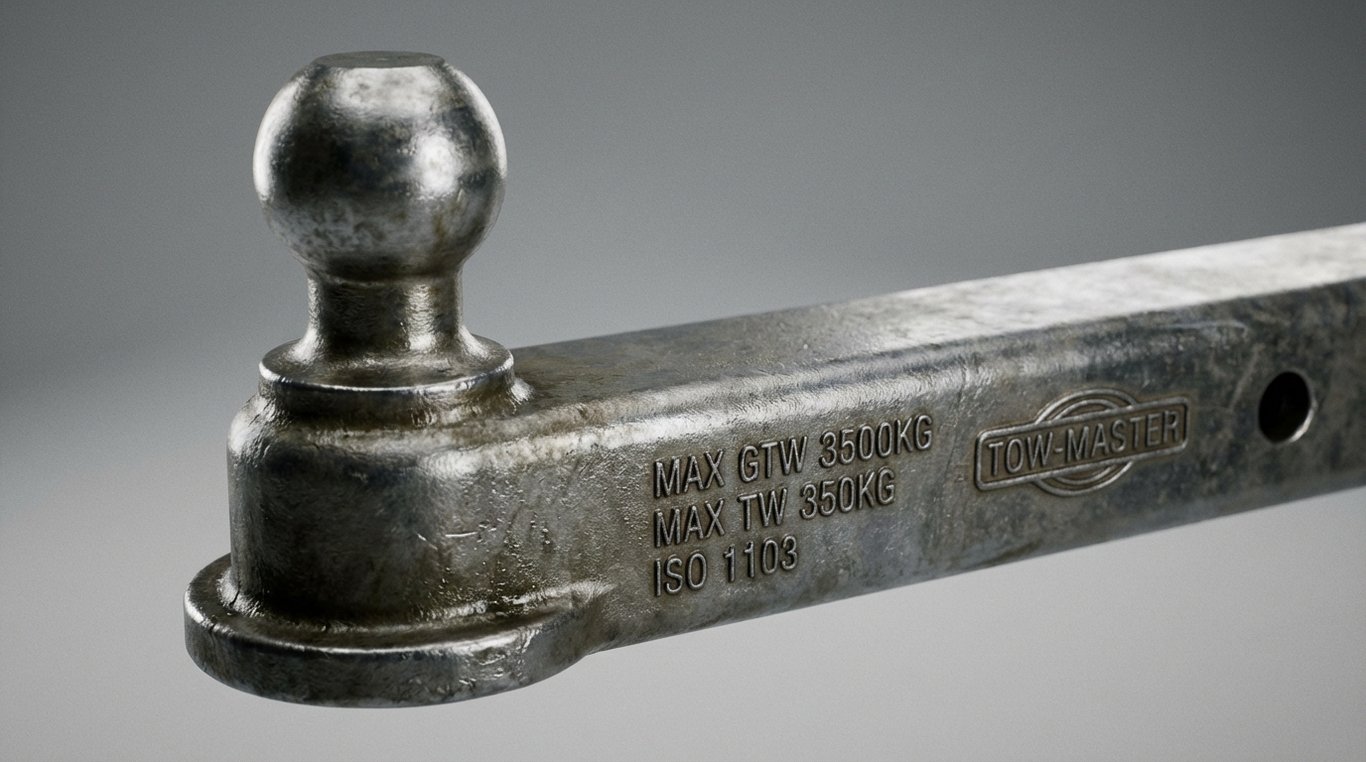

   • Australia/NZ tow hardware typically uses a 50 mm tow ball rated up to 3.5 t; heavier trailers may use a 70 mm ball (AU) with a higher rating. The ball size must match the trailer coupling, and both must be stamped at or above your GTW and tongue load.
   • Use a compliant towbar and 50 mm square hitch receiver (if fitted) rated for your trailer. The stamped rating on the towbar/tongue rules.
   • Fit safety chains of the correct grade and number for the trailer’s rating, crossed under the drawbar.
4. Brakes and control systems
   • Braked vs unbraked: Confirm which rating applies to you. In Australia, trailers over 750 kg generally require brakes; over 2,000 kg typically require a breakaway system that applies the brakes if separated. NZ rules set similar requirements based on mass and stopping performance. Check your state/territory authority or Waka Kotahi for specifics.
   • Electric trailer brakes need an in‑cab brake controller and a suitable wiring connection (common 7‑pin/12‑pin plugs; heavy caravans often use an auxiliary Anderson plug).
   • Surge/override brakes are common on some boat trailers but offer less driver modulation.
   • Test lights, indicators, brake function and the breakaway battery before you go.
5. Consider stability aids
   • Weight‑distribution hitches help level the rig and restore steering/braking feel when tongue weight is significant.
   • Friction or electronic sway control can reduce yaw. These aids don’t raise your ratings; they make the existing setup behave.
6. Do the maths (worked examples in kg)
   • Example 1 (everyday box trailer): Vehicle payload 650 kg. Three occupants plus gear = 220 kg. Trailer GTW 750 kg unbraked; tongue weight target 10% = 75 kg. Payload remaining for TW = 430 kg; you’re fine. Confirm your vehicle’s unbraked tow rating is at least 750 kg.
   • Example 2 (family caravan): Trailer GTW 2,200 kg. Target TW 12% = 264 kg. Vehicle payload 700 kg; passengers/gear = 200 kg; payload remaining 500 kg, so TW fits. Check vehicle braked tow rating ≥ 2,200 kg and verify loaded vehicle + 2,200 kg ≤ GCWR. If the towbar tongue is stamped to 250 kg TW, you must either reduce TW (while staying ≥10%) or fit appropriately rated hardware-lowest rating controls.
7. Final pre‑tow checks (compact)
   • Manual and door sticker read; numbers noted (GVWR, payload, tow rating, GCWR if listed).
   • Trailer weighed; tongue weight measured and within 10-15% (or 15-25% fifth‑wheel).
   • Towbar, tongue and tow ball sizes match and are stamped at or above GTW/TW; safety chains fitted and crossed.
   • Trailer brakes operational; brake controller set; breakaway (if required) armed and charged.
   • Tyre pressures (vehicle and trailer) set cold per placards; lights and indicators working; mirrors adjusted; short local test drive completed.

Common traps to avoid

• Treating “towing capacity” as a solo number. Payload and GCWR matter just as much.
• Ignoring that tongue/ball weight counts against payload, overloading the rear axle.
• Using the wrong ball size or an under‑rated towbar/tongue-the system is limited by its weakest link.
• Skipping legal brake and breakaway requirements. AU/NZ rules are enforced and for good reason.

Where to from here

• If your trailer sits near your ratings, or you feel sway, nose‑high stance or long stopping distances, talk to a reputable towbar/caravan specialist. A correctly rated weight‑distribution hitch, sway control, brake controller or upgraded towbar can transform safety and confidence.
• When comparing vehicles, don’t just chase the biggest tow number. Look at payload, the fine print about braked vs unbraked capacity, and whether the manufacturer recommends a WDH at higher weights.

The mindset shift to take with you: start with payload and tongue weight, confirm the combined mass, and respect the weakest link. Do that, and your next tow-down to the bach or across the Nullarbor-will feel calm, predictable and, frankly, a lot more enjoyable.
